CNC lathe machine
A CNC (Computer Numerical Control) lathe is an essential machine tool in modern manufacturing, renowned for its precision, efficiency, and versatility. These machines have changed the way various materials, especially metals, are shaped and processed by automating the movements and operations traditionally done manually. Understanding the number of axes in a CNC lathe is essential, as it directly impacts the machine’s capability to perform complex tasks.
This guide explores the different axes present in CNC lathes, ranging from the basic two-axis models to more advanced multi-axis configurations, highlighting their roles and the advantages they bring to the manufacturing process.
What Is a CNC Lathe?

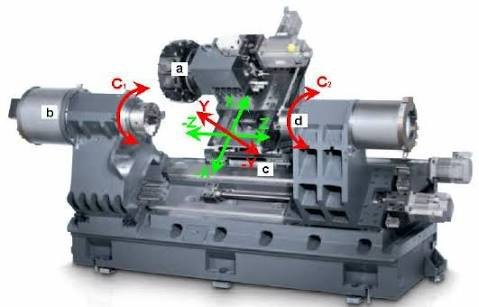

CNC lathe axis
A CNC (Computer Numerical Control) lathe is a complex machinery used in manufacturing to cut, shape precisely, and finish materials, most commonly metals. Unlike traditional manual lathes, CNC lathes are controlled by computer programs that dictate the movement and operation of the machine’s components. This computer control allows for highly accurate and repeatable operations, making CNC lathes indispensable in industries that require precision machining, such as aerospace, automotive, and medical device manufacturing.
The primary function of a CNC lathe is to rotate a workpiece along its axis while various cutting tools are brought into contact with the material to perform different operations. These operations include turning, facing, threading, and boring. The workpiece is held securely in place by a chuck or collet, and the cutting tools are mounted on a tool turret or tool post that can move in multiple directions to achieve the desired shape and dimensions.
CNC lathes are known for their ability to produce complex parts with minimal human intervention. The programming of these machines involves creating a set of instructions, often using G-code, that specifies the tool paths, speeds, and feeds required to machine the part. Once the program is loaded into the machine’s control unit, the CNC lathe can execute the machining operations with high precision and consistency. This level of automation not only improves production efficiency but also significantly reduces the chances of human error, resulting in higher quality and uniformity in the finished products.
How Does A CNC Lathe Work

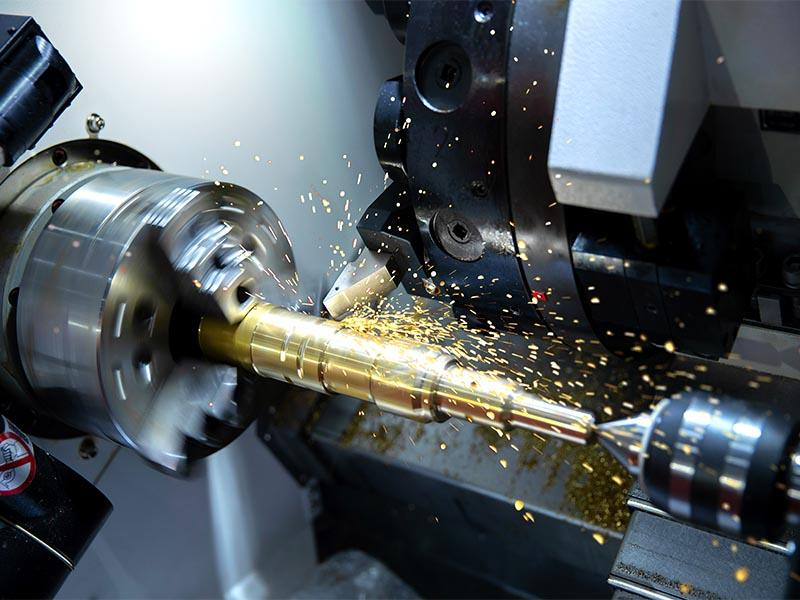

CNC lathe
A CNC lathe operates through a combination of computer control and precise mechanical movements to shape and finish materials. The process begins with the creation of a digital design, typically using Computer-Aided Design (CAD) software. This design is then converted into a set of instructions, known as G-code, which the CNC lathe’s computer control unit interprets to perform the necessary machining operations.
The main CNC lathe’s operation lies in its ability to precisely control the movement of both the workpiece and the cutting tools. The workpiece is mounted on a rotating spindle, which can spin at various speeds depending on the material and the specific operation being performed. The cutting tools are mounted on a tool turret or tool post, which can move along multiple axes to engage with the workpiece at different angles and positions.
Once the CNC lathe receives the G-code instructions, it begins by rotating the workpiece on the spindle. The computer control unit then directs the movement of the tool turret or tool post along the designated axes. Typically, a basic CNC lathe will have at least two axes of movement: the X-axis, which controls the lateral (horizontal) movement of the tool, and the Z-axis, which controls the longitudinal (along the spindle axis) movement. More advanced CNC turning machines may include additional axes, such as the Y-axis for vertical movement and the C-axis for rotational positioning of the workpiece.
During the machining process, the cutting tools are precisely positioned to remove material from the workpiece, following the programmed tool paths. This allows for a wide range of operations, including turning, facing, threading, and boring. The CNC system continuously monitors and adjusts the position and speed of the tools and the spindle to ensure that the machining process adheres to the specified dimensions and tolerances. The result is a highly accurate and consistent finished product, with minimal need for manual intervention or adjustments.
Is There Axis in CNC Lathe?
CNC lathe axis
The term “axis” in the context of a CNC lathe refers to the controlled directions in which the cutting tools and workpiece can move. These axes are essential for determining the machine’s capabilities and the complexity of operations it can perform. So, in reality, the presence of axes is fundamental to the function of a CNC lathe.
Every CNC lathe is designed with specific axes that guide the movements of its components. At a minimum, a basic CNC lathe will have two primary axes:
- X-axis: This axis controls the horizontal movement of the cutting tool, perpendicular to the spindle axis.
- Z-axis: This axis manages the longitudinal movement of the cutting tool, parallel to the spindle axis.
These two axes enable the CNC lathe to perform fundamental turning operations, such as cutting, facing, and threading, with high precision.
In addition to the basic two-axis configuration, many CNC milling lathes include additional axes to handle more complex tasks:
- C-axis: This axis allows for rotational positioning of the workpiece, enabling operations like CNC milling and drilling at various angles.
- Y-axis: This axis provides vertical movement of the cutting tool, allowing for off-center milling and drilling operations.
Where Is the Axis in CNC Manufacturing
In CNC manufacturing, specifically in CNC milling, axes are located within the milling machine’s structure and control system, defining the movement and positioning of cutting tools and workpieces.
- X-axis: Positioned horizontally, the X-axis controls movement from left to right along the milling machine’s bed or gantry. It facilitates precise lateral positioning of cutting tools or workpieces.
- Y-axis: The Y-axis is situated vertically, governing movement from front to back. It enables accurate depth control for cutting operations and facilitates intricate machining along the machine’s longitudinal axis.
- Z-axis: Perpendicular to both the X and Y axes, the Z-axis controls vertical movement, allowing cutting tools to penetrate or retract from the workpiece. It determines the depth of cuts and is critical for operations like drilling and slotting.
- A-axis: In advanced CNC milling machines, the A-axis is typically integrated into the machine head or spindle assembly. It enables rotational movement around the X-axis, facilitating angular cuts and complex CNC machining operations.
- B-axis: Similar to the A-axis, the B-axis allows rotational movement, typically around the Y-axis. It enhances the machine’s capability to produce intricate parts by tilting the workpiece or cutting tool in various directions.
- C-axis: Incorporated into the machine’s control system, the C-axis facilitates rotational movement around the Z-axis. It is instrumental in tasks requiring rotational positioning of the workpiece while maintaining cutting tool alignment.
Conclusion
The number of axes in a CNC lathe is pivotal in determining its capabilities and versatility in precision manufacturing. While basic CNC lathes typically feature two primary axes—X and Z—more advanced models may incorporate additional axes such as C and Y, enabling a broader range of operations and greater complexity in machining tasks. Understanding the role of each axis is essential for maximizing the potential of CNC lathe technology and harnessing its benefits in various industries.
FAQs
Is CNC Lathe the Same as CNC Turning?
While CNC lathe and CNC turning are closely related, they are not exactly the same. A CNC lathe is a machine tool used for various operations, including turning, facing, drilling, and threading, among others. Turning is just one of the operations that a CNC lathe can perform.
CNC turning specifically refers to the process of rotating a cylindrical workpiece while a single-point cutting tool removes material to create cylindrical shapes, such as shafts, rods, and disks. So, while CNC turning is a primary operation performed on a CNC lathe, the term “CNC lathe” encompasses a broader range of machining capabilities beyond just turning.
What Is the Life Expectancy of a CNC Lathe?
The life expectancy of a CNC lathe can vary depending on several factors, including the quality of the machine, its usage, maintenance, and technological advancements. Generally, well-maintained CNC lathes from reputable manufacturers can have a service life ranging from 15 to 25 years or more.
Regular maintenance, proper lubrication, and timely repairs can significantly extend the life expectancy of a CNC lathe. Additionally, advancements in technology and retrofitting options may allow older machines to remain productive for longer periods by incorporating new features and capabilities. However, eventually, wear and tear, technological obsolescence, and evolving manufacturing requirements may necessitate the replacement or upgrading of the CNC lathe.
