What Is the Difference Between Conventional and Swiss Lathe?

Lathes are known for their capacity to shape, cut, and form materials into precise components. They are crucial tools in the automotive, aerospace, and medical device industries, ensuring accuracy and efficiency in production operations. Conventional and Swiss lathes stand out among the different varieties of lathes for their unique designs and specialised applications.

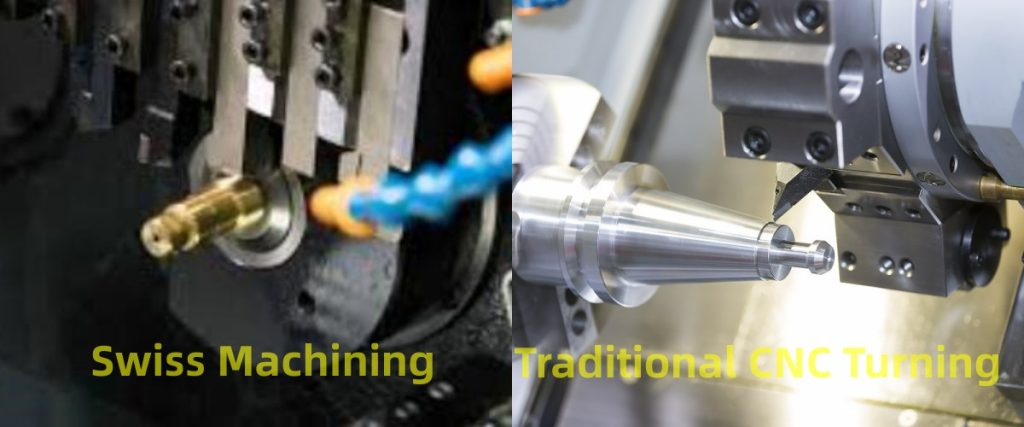

While both are essential to precise machining, they serve different purposes and industries. The major distinction between conventional and Swiss turning is how the workpiece is held. Conventional turning centres hold the workpiece at one or both ends, whereas Swiss turning centres feed the workpiece through a guide bushing, ensuring that the machining is always performed close to the support point. This article examines the fundamental distinctions between conventional and Swiss lathes, emphasising their unique characteristics, benefits, and drawbacks.

What Is a Conventional Lathe?

A conventional lathe, often called a traditional or engine lathe, is one of the most fundamental and widely used machines in metalworking. It operates on a simple principle: a workpiece is secured and rotated around its axis. At the same time, a cutting tool is applied to remove material, shaping the workpiece into the desired form. Conventional lathes are versatile and can perform various operations such as turning, facing, threading, and drilling. This versatility makes them a staple in small workshops and large manufacturing facilities.

Features

Below are the features of a Conventional Lathe:

  • Manual Control: Conventional lathes rely heavily on the operator’s manual input. Speed, feed, and depth of cut are all controlled manually, allowing for a high degree of flexibility in machining various parts.
  • Versatility: These lathes can perform a wide range of operations, including turning, facing, threading, drilling, and tapering. This versatility makes them suitable for various machining tasks.
  • Tool Compatibility: These lathes can accommodate various cutting tools, from high-speed steel (HSS) to carbide-tipped tools, making them adaptable to different materials and machining requirements.
  • Cost-Effective: Conventional lathes are generally less expensive than more specialized or automated machines, making them an accessible option for small workshops or businesses.

Pros

Below are the pros of a Conventional Lathe:

  • Flexibility: Due to their manual control, conventional lathes offer flexibility in handling different machining tasks, from simple to complex shapes. They are ideal for custom work and prototyping.
  • Ease of Use: While they require skilled operators, conventional lathes are relatively straightforward to learn and use, making them accessible to machinists with varying experience levels.
  • Durability: With their robust construction, conventional lathes can withstand heavy use and are known for their long service life, often lasting for decades with proper maintenance.
  • Cost-Effective for Small Runs: For low-volume production, repair work, or custom parts, conventional lathes are more cost-effective than CNC machines, which may be overkill.
  • Wide Availability: These lathes are widely available and have a long history of use, meaning parts, accessories, and skilled operators are relatively easy to find.

Cons

Below are the cons of a Conventional Lathe:

  • Manual Labor-Intensive: Since these lathes require manual operation, they can be labour-intensive and time-consuming, particularly for complex parts or large production runs.
  • Operator Skill Dependency: The quality of the finished product is highly dependent on the operator’s skill and experience. Inconsistent results can occur if the operator is not highly proficient.
  • Limited Precision: While conventional lathes are versatile, CNC metal lathes may achieve a different level of precision than conventional lathes, especially in intricate or high-tolerance work.
  • Lower Production Efficiency: Conventional lathes are less efficient for high-volume manufacturing than automated machines like CNC lathes, which can operate continuously with minimal supervision.
  • Maintenance Requirements: Constant maintenance is essential to keep a conventional CNC lathe metal in good working condition. This includes lubrication, alignment checks, and wear part replacement, which can add to operational costs.

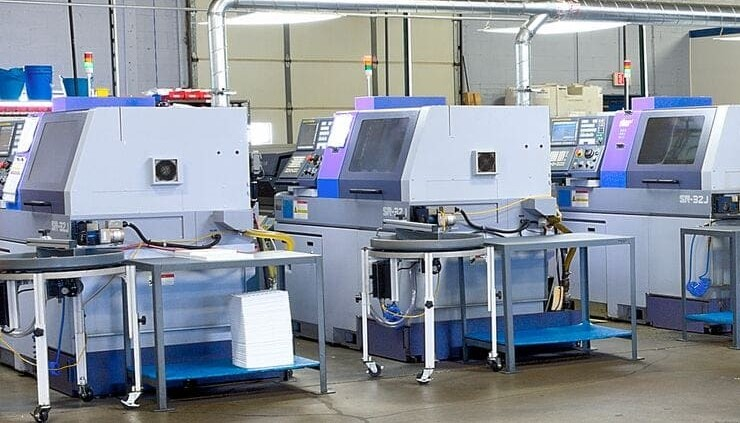

What Is Swiss Lathe?

A Swiss lathe, also known as a Swiss-type automatic lathe or Swiss screw machine, is a highly specialized machine tool designed for precision machining of small, complex parts. Unlike conventional lathes, where the workpiece is stationary while the cutting tool moves, a Swiss lathe moves the workpiece through a guide bushing while the cutting tool remains stationary. This unique design allows for extremely tight tolerances and precision, making Swiss lathes the preferred choice for industries like medical device manufacturing, electronics, and watchmaking.

Features

Below are the features of a Swiss Lathe:

  • Guide Bushing Mechanism: The defining feature of a Swiss lathe is the guide bushing. This bushing supports the workpiece close to the cutting tool, reducing deflection and allowing for precise machining of long, slender parts.
  • CNC Control: Most modern Swiss lathes are equipped with CNC (Computer Numerical Control), enabling automated, precise, and repeatable machining operations. This allows for complex part geometries and high production rates.
  • Multi-Axis Machining: Swiss lathes often have multiple axes, allowing for simultaneous machining operations. This capability reduces cycle times and increases productivity by machining multiple features of a part in one setup.
  • Small Part Machining: Swiss lathes excel at CNC machining small-diameter parts with intricate features, making them ideal for industries like medical device manufacturing, aerospace, and electronics.
  • High Precision: The design and operation of a Swiss lathe ensure high precision and tight tolerances, often within microns. This precision is critical for applications requiring exact specifications and minimal deviation.

Pros

Below are the pros of a Swiss Lathe

  • Exceptional Precision: Swiss lathes are renowned for their ability to machine parts with extremely tight tolerances, making them ideal for high-precision industries like watchmaking, medical devices, and aerospace.
  • Efficiency in Small Part Production: These lathes are designed to handle small-diameter, complex parts efficiently, reducing the need for different setups and secondary operations.
  • Reduced Deflection: The guide bushing mechanism significantly reduces deflection during machining, ensuring consistent accuracy even with long, slender parts.
  • Multi-Operation Capability: Swiss lathes can perform multiple operations in a single setup, such as turning, milling, and drilling. This reduces cycle times and increases overall productivity.
  • Automated Production: The CNC control in Swiss lathes enables automated, unattended machining, which is ideal for high-volume production runs. This automation reduces labour costs and increases throughput.

Cons

Below are the cons of a Swiss Lathe:

  • High Cost: Swiss lathes are significantly more expensive than conventional lathes in terms of initial investment and maintenance. This makes them less accessible to small workshops with limited budgets.
  • Complex Setup: The setup process for a Swiss lathe can be complex and time-consuming, requiring specialized knowledge and training. This complexity can lead to increased setup times compared to conventional lathes.
  • Limited to Small Parts: While Swiss lathes excel at machining small parts, they are unsuitable for larger workpieces. This limits their versatility in applications requiring larger components.
  • Maintenance Intensive: Swiss lathes require regular maintenance to ensure precision and smooth operation. This includes regular calibration of the guide bushing and CNC systems, which can be costly and time-consuming.
  • Less Manual Flexibility: Because Swiss lathes are heavily automated and CNC-controlled, they offer less manual flexibility than conventional lathes. This can be a disadvantage when custom or one-off parts are required.

Differences Comparison: Conventional Lathe vs Swiss Lathe

Here are the key differences between conventional and Swiss lathe machines:

Design and Operation

The workpiece is held in a chuck or between centres and rotates in a conventional lathe. At the same time, the cutting tool is moved manually or automatically along the workpiece to perform machining operations. The entire workpiece is supported by the headstock and tailstock, which can lead to deflection, especially when machining long, slender parts.

In contrast, a Swiss lathe features a guide bushing that supports the workpiece very close to the cutting tool. The workpiece moves longitudinally through the guide bushing while the cutting tool remains stationary. This design minimizes deflection and allows for high precision when machining long, slender parts.

Precision and Tolerances

While conventional lathes can achieve good levels of precision, they are typically less accurate than Swiss lathes, especially for small, complex parts. The precision is highly dependent on the operator’s skill and the rigidity of the machine setup.

Swiss lathes are designed for extremely high precision, often achieving tolerances within microns. The guide bushing mechanism and CNC control ensure consistent accuracy, making Swiss lathes the preferred choice for industries requiring intricate, small-diameter parts with tight tolerances.

Part Size and Complexity

Conventional lathes are versatile and can handle various part sizes and shapes. They are suitable for simple and moderately complex parts, but their efficiency decreases with highly intricate or small parts.

Swiss lathes specialize in machining small, complex parts. They excel in producing high-precision components with intricate geometries, such as those in medical devices, electronics, and watchmaking. However, they are not suitable for larger workpieces.

Setup and Operation Complexity

The setup of a conventional lathe is relatively straightforward, with manual adjustments required for each operation. However, the operator must be skilled to achieve precise results. Conventional lathes are more suited to custom or one-off parts due to their manual control.

Swiss lathes have a more complex setup process, often requiring specialized knowledge and experience. The CNC programming involved adds to the complexity, but once set up, they can operate with minimal human intervention. This makes them ideal for high-volume, repeatable production.

Production Efficiency

Conventional lathes are less efficient for large-scale production runs due to manual operation. They are more suited for low-volume production, prototyping, or repair work where flexibility is needed.

Swiss lathes are highly efficient for high-volume production of small, precise parts. Their ability to perform several operations in a single setup reduces cycle times and increases throughput, making them ideal for industries that require mass production of intricate components.

Cost

Conventional lathes are generally more affordable in terms of initial purchase and ongoing maintenance. This makes them accessible to a wider range of users, including small workshops and hobbyists.

Swiss lathes are significantly more expensive due to their advanced technology and precision capabilities. The cost is justified for industries where high precision and high-volume production are critical, but it may be prohibitive for smaller operations.

Conclusion

Conventional and Swiss lathes offer specific advantages tailored to several machining requirements. Conventional lathes are versatile and cost-effective, making them excellent for general machining and low-volume production. With their superior precision and efficiency, Swiss lathes excel at producing small, complex parts in large quantities. The choice is based on the project’s individual needs. Conventional lathes for flexibility and broader applications, and Swiss lathes for precision and intricate, high-volume work.
